Walkera F210 - Scheda tecnica Walkera F210

Categoria

Drone

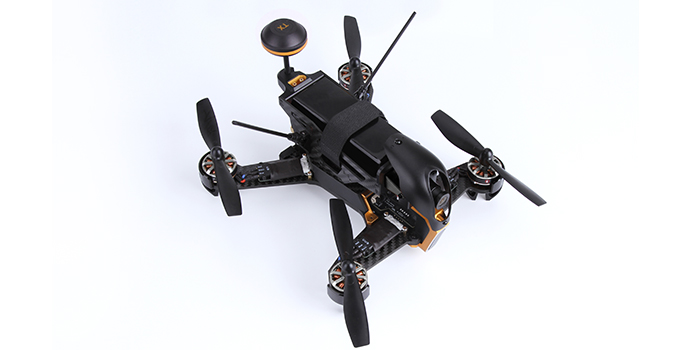

Immagini Walkera F210

Caratteristiche tecniche Walkera F210

Aircraft specifications
Main Rotor Dia 128mm
Overall (L x W x H) 182x182x103mm
Weight 370g(Battery included)
Remote Controller DEVO 7
Receiver DEVO-RX713
Main Controller FCS-F210(F3)
Transmitter TX5825(FCC)/TX5824(CE)
OSD F210 OSD
Brushless Motor WK-WS-28-014A(CW/CCW)KV2500
Brushless ESC F210(CW/CCW)
Battery 14.8V 1300mAh 40C 4S Li-PO
Flight Time 8~9mins
Working environment -10℃ ~ +40℃
Camera（700TVL）
Horizontal Resolution 700TVL
System Commitee PAL/NTSC
Video Out 1.0Vp-p/75Ω
Power Input DC 12V
TX5825(FCC)/TX5824(CE) transmitter
5.8G wireless image transmission
TX5825(FCC) Bind B section 4 channels
TX5824(CE) Bind B section 8 channels
TX5825(FCC) output power ≤200mW
TX5824(CE) output power ≤25mW

Specifiche e Funzioni Walkera F210

-

Pro e contro Walkera F210
