Walkera Rodeo 150 - Scheda tecnica Walkera Rodeo 150

Categoria

Drone

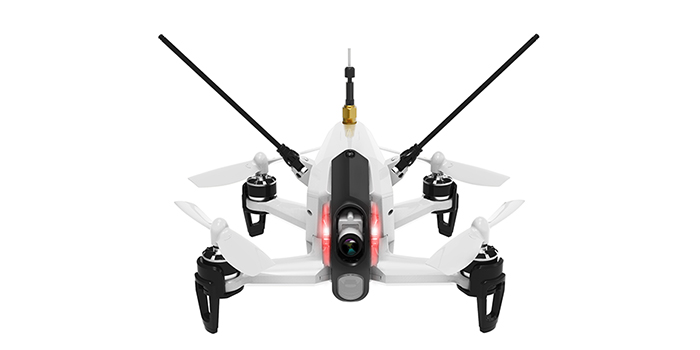

Immagini Walkera Rodeo 150

Caratteristiche tecniche Walkera Rodeo 150

Aircraft specifications
Main Rotor Dia 96mm
Overall (L x W x H) 137 x 148 x 77mm
Weight 159g (Battery excluded)
Remote Controller DEVO 7 / DEVO F7
Receiver DEVO-RX716
Main Controller FCS-Rodeo 150
Transmitter TX5832(FCC)/TX583
Brushless Motor WK-WS-17-002(CW/CCW)
Brushless ESC Rodeo 150
Battery 7.4V 850mAh 30C 2S LiPo
2D Flight Time 7~8mins
Working environment -10℃~ +40℃
Camera（600TVL）
Horizontal Resolution 600TVL
System Commitee PAL/NTSC
Video Out 1.0Vp-p/75Ω
Power Input DC 5-12V
TX5832(FCC) / TX5833(CE) transmitter
5.8G wireless image transmission
TX5832(FCC) Bind B section 4 channels
TX5833(CE)) Bind B section 8 channels
TX5832(FCC) output power ≤200mW
TX5833(CE) output power ≤25mW

Specifiche e Funzioni Walkera Rodeo 150

-

Pro e contro Walkera Rodeo 150
