Yuneec Tornado - Scheda tecnica Yuneec Tornado

Categoria

Drone

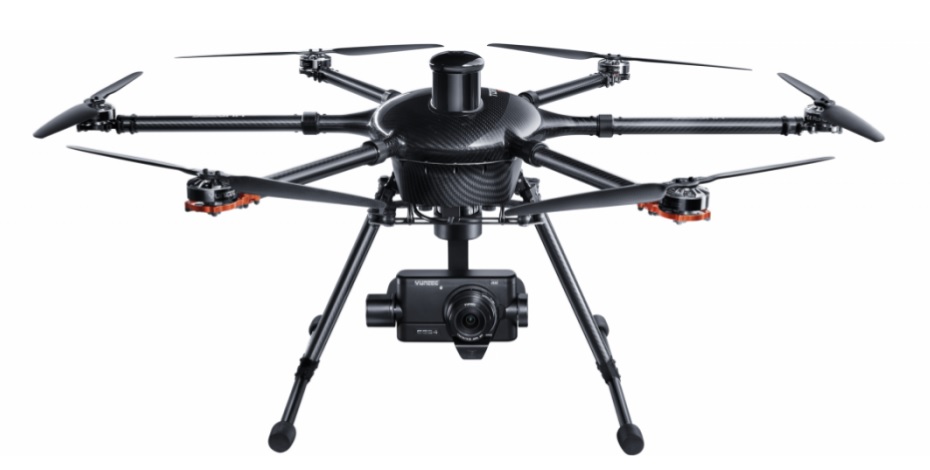

Immagini Yuneec Tornado

Caratteristiche tecniche Yuneec Tornado

Aircraft
AIR TIME 24 min
DIAGONAL LENGTH WITHOUT ROTOR BLADES 36.2 in(920mm)
PROPELLER / MAIN ROTOR DIAMETER 17.3 in (440mm)
TAKE-OFF WEIGHT WITH GB603, GH4 CAMERA AND BATTERY 176.0 oz (4990g)
BATTERY LiPo 6s 4000mAh 8C
CHARGER 100W 2 x output AC-DC Balancing Charger
TRANSMITTER 24-channel 2.4GHz with 5.8GHz video downlink (included)
FLIGHT MODES Smart, Angle and Home Modes
MAXIMUM FLYING HEIGHT (ABSOLUTE ALTITUDE） 4000m (13123 ft)
MAXIMUM FLYING HEIGHT (RELATIVE ALTITUDE) 122m (400 ft)
MAXIMUM ROTATION RATE 100°/s
MAXIMUM ROLL ANGLE 35°
MAXIMUM HORIZONTAL SPEED 40km/h
RADIO CONTROL FREQUENCY BAND 2.4GHz
OPERATING TEMPERATURE RANGE ﹣10℃ to 50℃
Gimbal
DIMENSION 8.3x8.6x7.7in (210x219x196mm) for GH4; 8.3x8.8x7.7in(210x223x196mm)for sony α7
WEIGHT Without camera: 31.4 oz(890g)/With camera: 56.5 oz (1600g)
AXES 3
MAXIMUM CONTROL RANGE Pitch：between 30° and -90° Yaw：between 0°and 360°
MECHANICAL RANGE Pitch：between -120°and 75° Roll：between -40°and 40° Yaw：between 0° and 360°
MAXIMUM CONTROL SPEED Pitch：30° /s Yaw: 30° /s min
WORKING VOLTAGE 12.0~25.2V
WORKING CURRENT 0.38~1.0A
STORAGE TEMPERATURE 10°----30°
WORKING TEMPERATURE —5°---+45°
COMPATIBLE DEVICE Panasonic LUMIX GH4 (Olympus M.ZUIKO DIGITAL ED 12mm f/2.0), SONY® ¬7 ILCE-7 (Sony SE_ 35F26Z FE2.8/35)
Ground Station
OPERATING SYSTEM Android™
NUMBER OF CHANNELS 24
CONTROL TRANSMISSION DISTANCE/RANGE (OPTIMUM CONDITIONS) Max 2km
ROBUST RADIO CONTROL MODULATION Yuneec Protocol
VIDEO LINK FREQUENCY BAND 5.8GHz
VIDEO TRANSMISSION DISTANCE/RANGE (OPTIMUM CONDITIONS) FCC Compliance: Up to 700m(2296.59ft); CE Compliance: Up to 300m (984.25ft)
FLIGHT SYSTEMS TELEMETRY DATA ON SCREEN DISPLAY (OSD) Yes
LED BACKLIT LCD SCREEN 7”
TACTILE (VIBRATING) AND AUDIBLE FEEDBACK Yes
BUILT-IN LI-ION BATTERY VOLTAGE / CAPACITY 8700mAh 1S Li-ion
