DJI Inspire 1 - Scheda tecnica DJI Inspire 1

Categoria

Drone

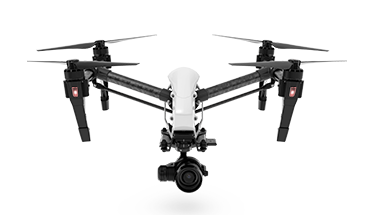

Immagini DJI Inspire 1

Caratteristiche tecniche DJI Inspire 1

AIRCRAFT

Model T600
Weight 2870 g (Battery and propellers included, Zenmuse X5 excluded)
3400 g (Battery, propellers and Zenmuse X5 included)
Max Takeoff Weight 3500 g
Hovering Accuracy (P Mode) Vertical: 0.5 m
Horizontal: 2.5 m
Max Angular Velocity Pitch: 300°/s
Yaw: 150°/s
Max Tilt Angle 35°
Max Ascent Speed 5 m/s
Max Descent Speed 4 m/s
Max Speed 18 m/s (ATTI mode, no wind)
Max Service Ceiling Above Sea Level 4,500 m (Default altitude limit: 120 m above takeoff point)
Max Wind Speed Resistance 10 m/s
Max Flight Time Approxi. 15 minutes
Motor Model DJI 3510H
Propeller Model DJI 1345T
Indoor Hovering Enabled by default
Operating Temperature 14° to 104° F (-10° to 40° C)
Diagonal Distance 559 mm

Specifiche e Funzioni DJI Inspire 1

REMOTE CONTROLLER

Name C1
Operating Frequency 922.7~927.7 MHz (Japan Only)
5.725~5.825 GHz
2.400~2.483 GHz
Max Transmitting Distance FCC Compliant: 3.1 miles (5 km); CE Compliant: 2.1 miles (3.5 km)
(unobstructed, free of interference)
EIRP 10 dBm@900m MHz, 13 dBm@5.8 GHz, 20 dBm@2.4 GHz
Video Output Ports USB, Mini HDMI
Power Supply Built-in battery
Charging DJI charger
Dual User Capability Host-and-Slave connection
Mobile Device Holder Tablet or Smart Phone
Max Mobile Device Width 170mm
Output Power 9 W
Operating Temperature 14° to 104° F (-10° to 40° C)
Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charging Temperature 32° to 104° F (0° to 40° C)
Battery 6000 mAh 2S LiPo

BATTERY (STANDARD)

Name Intelligent Flight Battery
Model TB47
Capacity 4500 mAh
Voltage 22.2 V
Battery Type LiPo 6S High voltage battery
Energy 99.9 Wh
Net Weight 570 g
Operating Temperature 14° to 104° F (-10° to 40° C)
Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charging Temperature 32° to 104° F (0° to 40° C)
Max Charging Power 180 W
